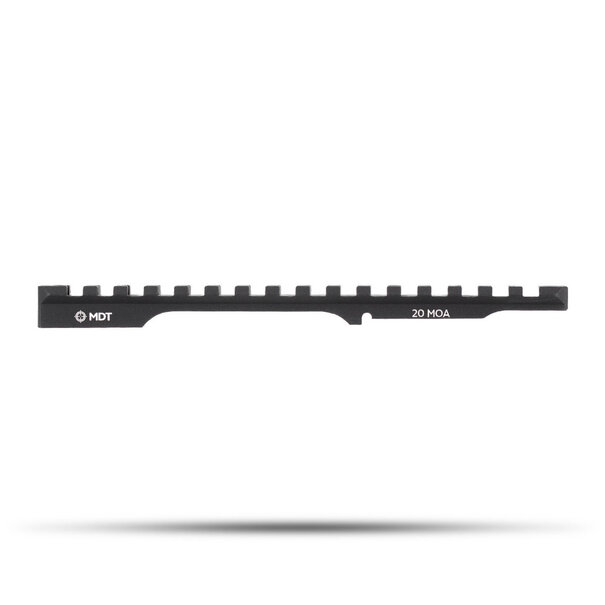

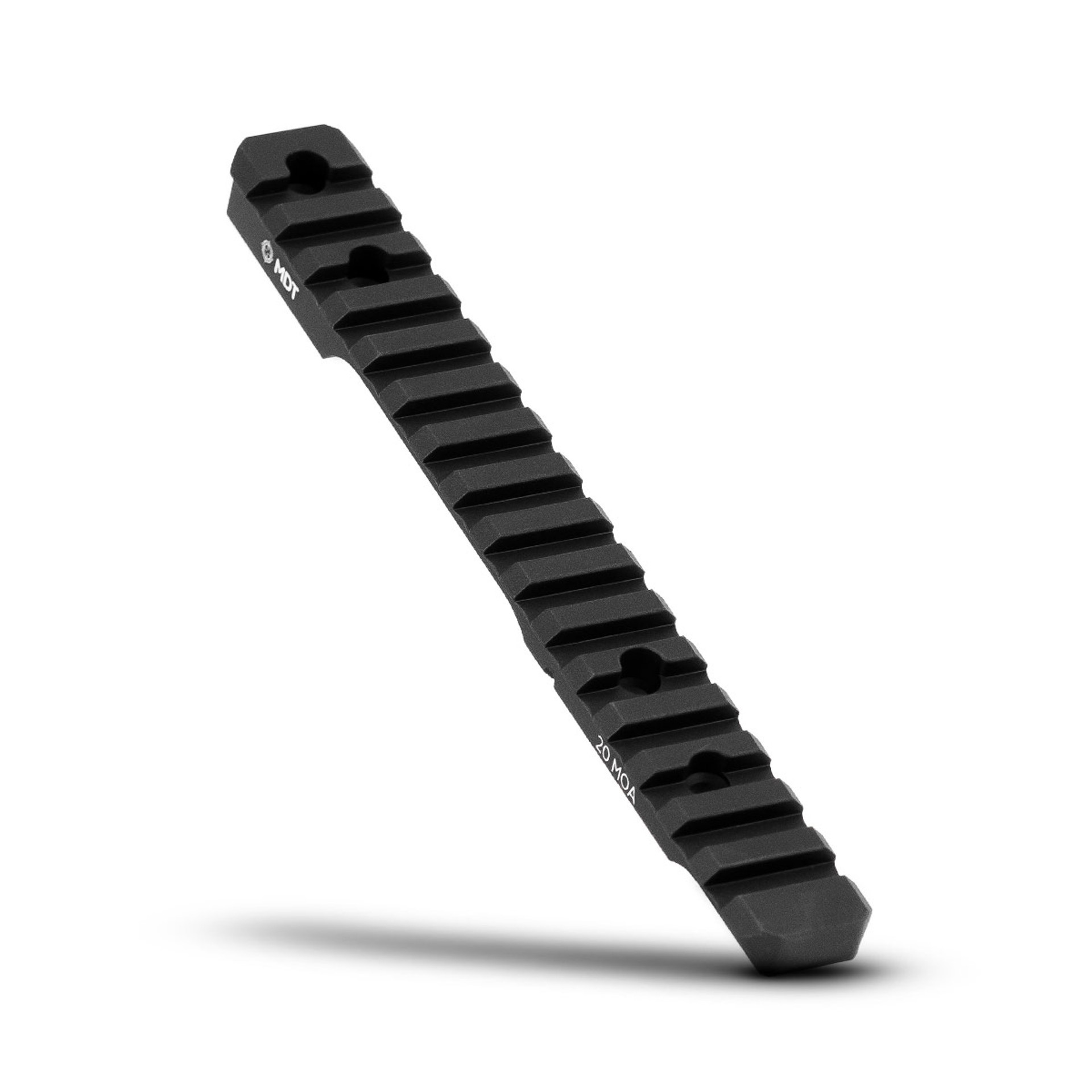

MDT Scope Base 20 MOA Picatinny Rail HOWA 1500 SA

MDT's Scope Base Picatinny Rails are a precise and reliable solution when it comes to mounting a scope on your bolt action rifle.

DETAILS

MDT’s Scope Base Picatinny Rails are designed to make the mounting of your optics easier. They are machined from 6061-T6 aluminum, then hard-anodized black for a durable finish. The underside of the rails are profiled to allow the rail to be mounted flush on the receiver and to match the geometry of the ejection port. These rails are designed with a 20 MOA incline providing additional elevation adjustment from your scope*. A recoil lug has been integrated in the underside rail profile on models where the action’s design allows for this feature.

*Additional elevation adjustment will vary based on your scope specifications.

SPECIFICATIONS

MIL-STD-1913 & STANAG 4694 spec rails

CNC machined from 6061-T6 aircraft grade aluminum

Mil-Spec Type II hard anodized

20 MOA rail

Integrated recoil lug**

SA & LA options

Contoured for snag-free operation

HARDWARE INCLUDED

#6-48 TORX screws (rail base drilled to accommodate #8-40 screws also)
